Lab 400X Inverted Compound Microscope Trinocular Head CE / ISO Certification

Model Number : BDS400

Certification : CE,ISO,RoHs

Place of Origin : China

MOQ : 1 pieces

Price : Discuss

Payment Terms : T/T, Western Union

Supply Ability : 1000 Piece/Pieces per Month BDS400 Inverted Biological Microscope

Delivery Time : 5-20 days

Packaging Details : Inverted Microscope is packed in foam and carton box for outside

Theory : Optical Inverted Biological Microscope

Apply for : education life science laboratory,medical,hospital clinical test

Drawtube : Trinocular head

Eyepiece : WF10x/22mm

Stage size : 210mm x241mm

Round slide size : dia.110mm

Warranty : 12 years

Optional camera : 3MP,5MP,12MP

Contact Now

►BDS400 Bilogical Inverted Microscope

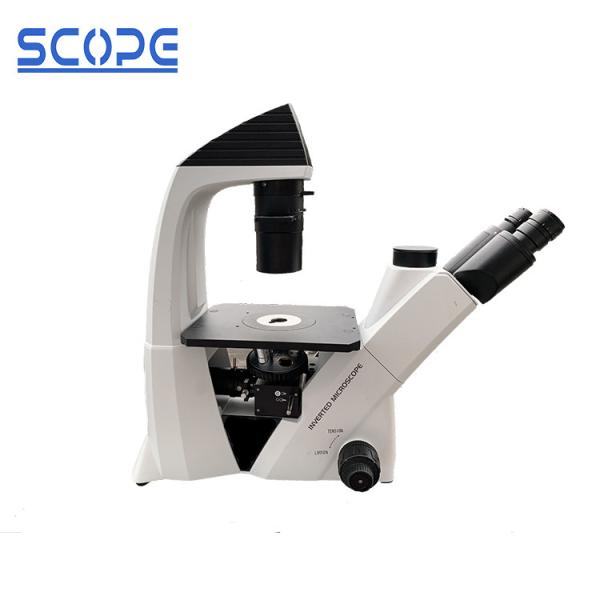

BDS400 Inverted Biological Microscope is a kind of microscope whose objective is under the stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. It’s stage is mechanical stage, size 210x241mm, the round slide size is dia.118mm, with attachable mechanical stage for 96 holes plate, moving range 128x80mm. The illumination is transmit light, Koehler illumination halogen 6V30W.

⇒Descrition

• Wide magnification settings from 100X to 400X

• Professional infinity plan inverted microscope

• Upright photo port for photographic/video capability

• RoHS certificate CE Approved and Manufactured Under ISO 9001 Quality Control Standard

⇒BDS400 inverted biological microscope outfits

Specification			Outfits
Seidentopf Trinocular ead	Inclining 45°, interpupillary distance: 48-76mm		Y
	With Light distribution Knob for two types splitting ratio: 100: 0(100% for eyepiece) 80:20 (80% for trinocular head, and 20% for eyepiece)		Y
Annular Spot	10×,20×, 40×		Y
	4x		O
Eyepiece	WF10×／22mm		Y
Infinity long working distance objective lens	Plan objective	LPL 4X /0.11	O
		LPL10X /0.25	Y
		LPL 20X /0.40	Y
		LPL 40X /0.60	Y
	Plan Phase Contrast objective	LPL Ph P 4X /0.11	O
		LPL Ph P 10X /0.25	O
		LPL Ph P 20X /0.40	Y
		LPL Ph P 40X /0.60	O
Revolving nosepiece	Five holes		Y
Focusing system	Coaxial coarse and fine focusing unit Tension for coarse focusing knob can adjustable		Y
Platform	Mechanical platform size: 210(X) mm* 241(Y)mm,		Y
	Round slide diameter: φ110mm		Y
	Attachment 96-hole plate mechanical stage ,moving: 128(X) mm* 80(Y)mm		Y
Long working distance condenser	N.A.0.3, quickly removed, Working distance 72mm with condenser Working distance 195mm without condenser		Y
Light source	Halogen 6V/30W light source,adjustment bright		Y
Input voltage	100V～240V		Y
Filter	Blue		Y
	Green		Y
	Amber		O
	Grey		O
Culture dish holder	35mm		O
	54mm		Y
	65mm		O
	Blood cell counter		O
C-mount	0.5X,focus adjusatble		O
	0.75X,focus adjustable		O
	1X,focus adjustable		O
Adaptor for digital Photograph	Apply for CANON/NIKON		O

⇒Details

0.1 Objective
